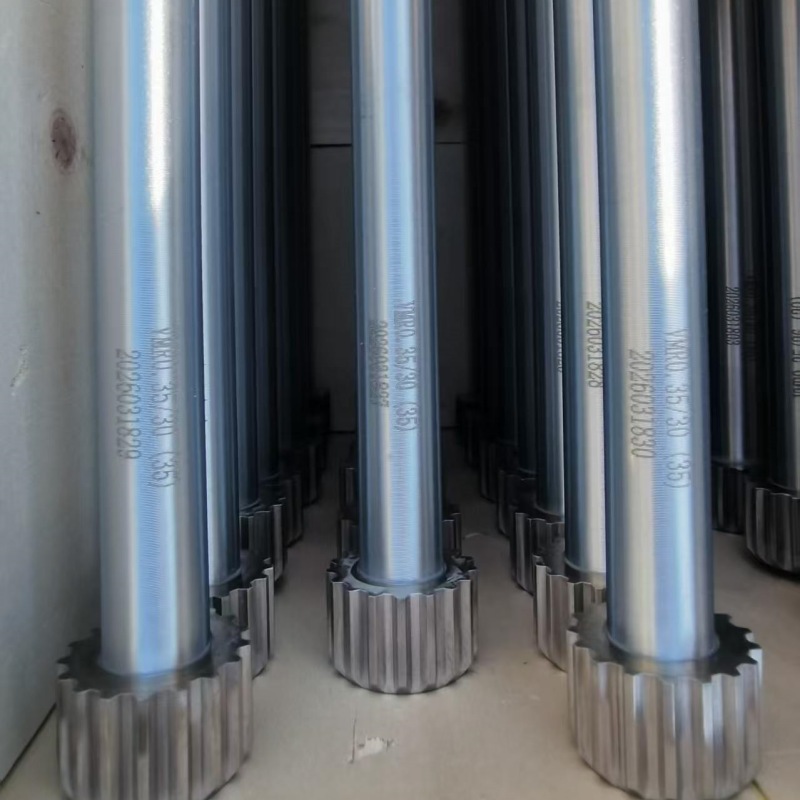

Metering Rods are precision tools manufactured to tolerances in the micrometer range. During production, any deviation in diameter, surface smoothness, or plating can cause fluctuations in the quantity and quality of the coating. Hangxuan dosing rods are produced using precision dies and cold extrusion technology, which fully ensures their machining accuracy.
Coating using grooved metering bars is known as volumetric metering. During the metering process, the tips of the grooves make near-contact with the substrate or the coating roller. The precise coating volume is determined by the geometry of the grooved bar, specifically by the cross-section and spacing of the metering bar profile
On grooved metering bars, linear load serves primarily as wear compensation rather than for setting the coating volume. Ideally, after installing a new metering system, high contact pressure is applied initially, and this pressure is gradually reduced until the minimum pressure is reached. This ensures consistent coating results throughout the metering system’s maximum service life. To enhance the wear resistance of the metering bars, Hangxuan metering bars utilize a hard chrome plating process. The application method of the plating solution ensures uniform coating thickness across the entire surface, which is a significant advantage, particularly for metering bars with steep-angled geometries.
Product Features
Improved coating uniformity and product quality;
Longer service life and greater cost-effectiveness;
Smarter design, opening new possibilities for innovative paper products;
The Metering rod body is made of stainless steel with a hard chrome-plated surface, featuring a coating thickness of 25 μm;
A variety of rod holders are available to meet customer needs, and custom rod holders can also be designed based on specific requirements.
